3 Phase Motor Control Panel With Auto Phase Shifter

Send Inquiry

Request To Call Back

3 Phase Motor Control Panel With Auto Phase Shifter

Get a Price/Quote

3 Phase Motor Control Panel With Auto Phase Shifter Specification

Features
Auto Phase Shifting, Short Circuit Protection, Overload Protection, Easy Maintenance

Control System
Automatic/Manual

Rated Current
Up to 400A

Thickness
1.6 mm - 2 mm

Connectivity Type
Hardwired

Base Material
Mild Steel

Operating Voltage
415V

Panel Type
Floor Mounted

Rated Operation Voltage
415V AC

Current Rating
Up to 400A

Protection Class
Class I

Way
Multiple ways (as per design)

Cabinet Material
Mild Steel

Protection Level
IP54

Cover Material
Powder Coated Mild Steel

Cooling System
Natural Air Ventilation

Components
MCB, MCCB, Contactor, Overload Relay, Auto Phase Shifter, Indicating Lamps, Volt/Amp Meter

Rated Insulation Voltage
660V

Product Type
3 Phase Motor Control Panel with Auto Phase Shifter

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Gray

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
400A

Dimension (L*W*H)
1200mm x 1000mm x 400mm (customizable)

Application
Industrial Motor Control and Protection

IP Rating
Ip54

Display Type
Analog / LED

Control Voltage
230VAC/110VAC

Type of Protection
Short Circuit, Overload, Phase Failure & Phase Sequence

Door Type
Single / Double (customizable)

Cable Gland Plate
Provided

Panel Weight
Approx. 120 kg (varies as per configuration)

Ambient Temperature Range
-10°C to 50°C

Busbar Material
Electrolytic Copper

Enclosure Type
Dust and Vermin Proof

Mounting Type
Floor Standing

Cable Entry
Top/Bottom Entry

Number of Starters
As per requirement

Auto Phase Shifter Response Time
< 1 second

Compliance
Conforms to IS/IEC standards

Relative Humidity
Up to 95% (non-condensing)

Earthing
Double Earthing Provided

About 3 Phase Motor Control Panel With Auto Phase Shifter

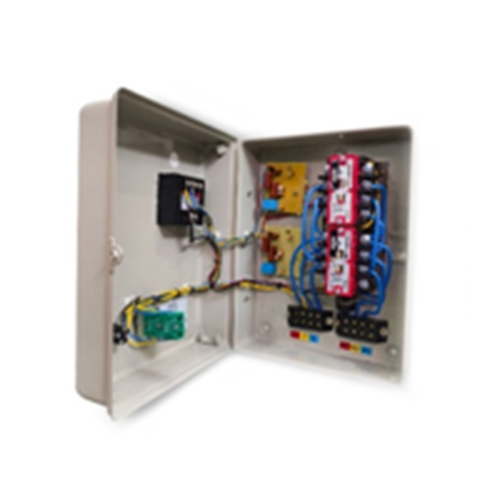

The oZo, 3 phase DOL Motor control panel is a Robust and efficient solution designed to manage and protect 3 phase electric motors upto 7.5 hp (DOL) and 10 hp (Single cable DOL). Engineered for high performance applications making it ideal for both industrial and agricultural applications.

We strive to protect your motors.

Key Features: Complete Motor protection

Adjustable Over current/Under current protection
Adjustable Dry run/under current protection
Single phase protection
Off timer upto 16 hrs

Panel components are under off condition when not in use (Motor off condition) increasing durability of panel

Additional protection circuit board

Phase imbalance
Phase loss
Phase sequence auto shift

Specifications:
Brand	oZo
Phase	Three
Contactor	4 Pole CH Type
Wire	4 Sqmm
Material	Metal Box
Model	SK3P-1
Motor power	upto 7.5 hp (DOL) and 10 hp (Single cable DOL)
Current setting	Auto mode +/- 30% of motor normal running amps
Current setting	Manual mode - Adjustble upto 40 Amps

Reliable Auto Phase Shifting

This motor control panel is equipped with an automatic phase shifter that detects improper phase sequences or failures and responds in under one second. This feature ensures motors are not damaged by voltage anomalies or phase loss, maintaining seamless operation and maximizing equipment longevity. Such reliability is crucial for industrial applications where uptime is essential.

Robust Construction and Protection

Crafted from mild steel and finished with a durable powder coat, the enclosure is dust- and vermin-proof and conforms to IP54 protection standards. The inclusion of double earthing and compliance with IEC 61439 / IS 8623 standards provides safety against electrical hazards and environmental threats, making it suitable for varied industrial environments.

Flexible Design and Easy Integration

The panel offers top or bottom cable entry, single or double door options, and customized starter numbers to fit your requirements. Its floor-standing design and customizable dimensions ensure easy installation and compatibility with a variety of industrial setups. Maintenance is straightforward, aided by an accessible cable gland plate and clear display meters.

FAQ's of 3 Phase Motor Control Panel With Auto Phase Shifter:

Q: How does the auto phase shifter benefit my industrial motor operations?

A: The auto phase shifter protects motors by automatically correcting incorrect phase sequence and responding to phase failure in less than one second. This minimizes downtime, prevents motor damage, and ensures uninterrupted production, which is vital for industrial applications that rely on stable three-phase power.

Q: What are the available options for cable entry and door type in this panel?

A: The panel supports both top and bottom cable entry to suit diverse site layouts. You can also choose between single or double door configurations, allowing the panel to be tailored to your space and operational requirements.

Q: Where is this panel typically installed and what application does it serve?

A: Designed as a floor-mounted panel, it is ideally installed in industrial environments such as manufacturing plants, workshops, and similar facilities. Its primary application is the safe and reliable control and protection of three-phase motors and associated machinery.

Q: What protection features are included in the control panel?

A: The panel provides comprehensive protection, including short-circuit, overload, phase failure, and phase sequence safeguarding. These mechanisms guard against common electrical faults, promoting safety and prolonging the service life of your equipment.

Q: When should the control panel be maintained and how easy is the process?

A: Regular maintenance schedules depend on site usage, but the panel's design-with clear analog/LED displays and accessible components-ensures that inspection and servicing are both simple and efficient. The easy-to-remove cable gland plate further streamlines cable management during maintenance.

Q: What standards do the panel and its components conform to?

A: All aspects of the panel conform to IS/IEC standards-specifically IEC 61439 and IS 8623-ensuring quality, safety, and compatibility with industrial electrical infrastructure in India and beyond.
